Charts Toolbar, Print and Sketch and Annotate Charts

1       Introduction

Charts Toolbar, Print and Sketch and Annotate Charts

This topic will go through the toolbar allowing you to toggle between day and night mode, print, sketch and add charts to your clipboard.

We estimate that this will take 3 minutes to complete.

2       Detailed Explanation

Charts Toolbar

We will now have a look at the charts toolbar.

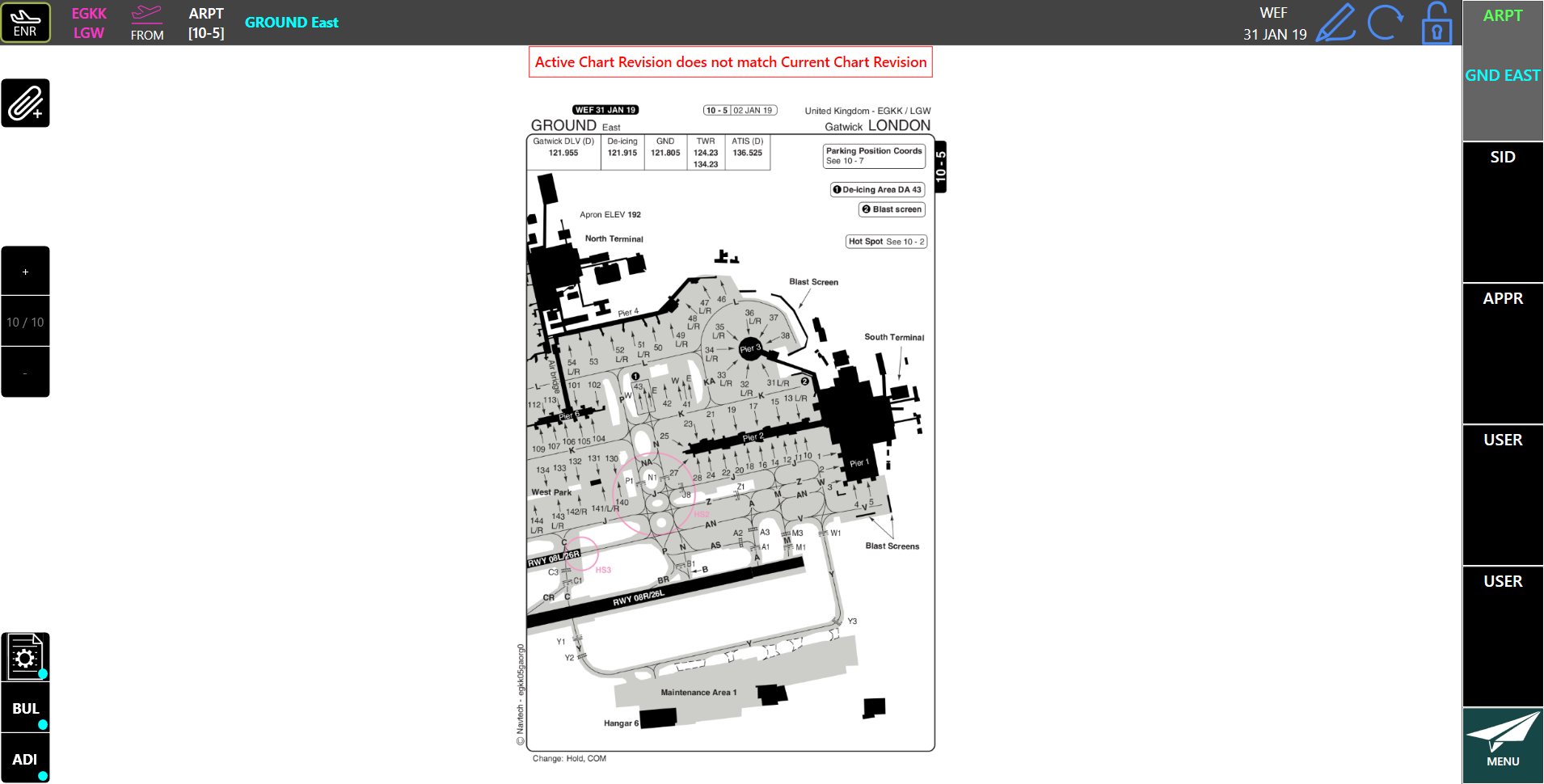

The charts toolbar is only visible when you are viewing arrival, alternate and departure charts and when viewing documents. The chart toolbar is always located in the left side of the screen. Not all the buttons on the toolbar are available on all screens

Let's go and look at the chart toolbar in more detail and see what these buttons do to the chart.

This button allows you to toggle between day and night mode. You are currently viewing the chart in day mode.

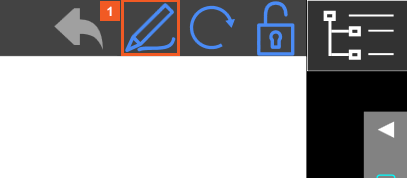

The lock button allows you to lock the current view of a chart or document. When
locked, the lock icon turns blue and the rotate icon is disabled along with zoom
and pan functionality. Tap the lock button a second time to release the current view

The arrow button allows you to rotate the chart or document to clockwise

The paperclip button allows you to add the charts or documents to clipboard for quick
access. When selected, the icon turns blue and the plus turns to a minus. See Clipboard and Bookmarks for more information.


The print button allows you to print a chart to a printer connected to your computer.


The Sketch and Annotate button opens the sketch toolbar that allows you to make sketches and annotations on a chart. When the marker button is activated the button reflects the marker color chosen in the Settings screen. See Sketch and Annotate charts for more information.

3       Print

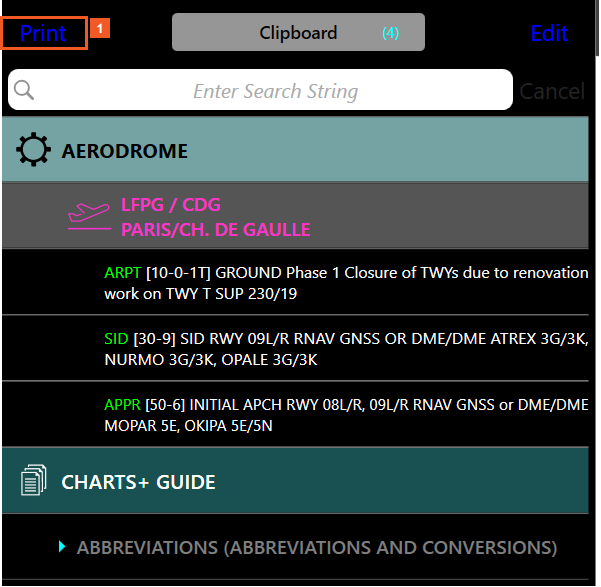

Let's say you want to print this chart out this can be done by going to the print feature.

Interaction 1

Interaction 1 Click the Print image.

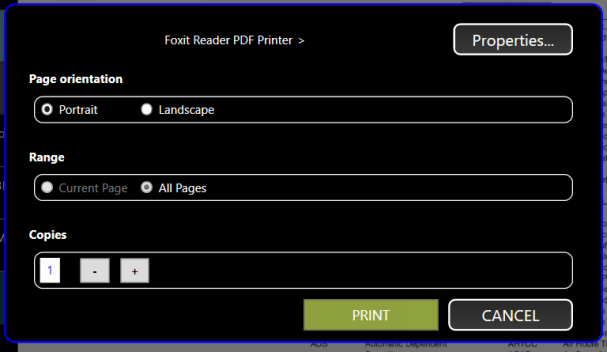

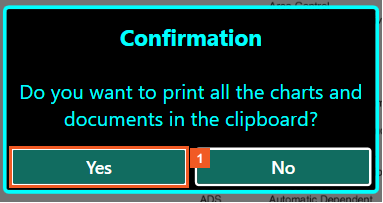

Before you can print you need to make sure that you have a printer connected to your device so you can print charts or documents. The chart/document is printed in day mode and scaled to print full page using the printers default settings.

To change any of the printer properties click the properties button.

You can select the number of copies you want to print by using the + and - buttons

4       Sketch and Annotate

The Sketch and Annotate toolbar allows you to sketch on or add notes to a chart in the chart viewer. Let's have a look at sketching your chart.

Interaction 1

Interaction 1 Click the Sketch and Annotate image.

Interaction 1

Interaction 1 Click the Marker button.

Notice how the icon has changed to blue. This color can be changed in the settings menu.

Let's have a look at the popup toolbar in more detail. Start by clicking on the marker button. This will allow you to highlight text that you wish to be in yellow.

In this example text has already been highlighted for you. To highlight the text simply click and drag across the text you wish to highlight. Let's now have a look at sketching on the chart.

Interaction 1

Interaction 1 Click the Circle button.

Using your mouse or your finger you can draw anywhere on the chart. In this example we drew a circle around the ELEV 488 label. You can change the color of the sketch by going to the settings menu to change the color.

Interaction 1

Selecting the drawing icon again will bring up the brush size.

Interaction 1 Click the Annotate button.

The annotate button allows you to write a note and place it on the chart. You can select the location of the note simply by clicking on the chart where you would like the note to go.

Interaction 1

Interaction 1 Click in the red box

Enter your note in the text box.

Interaction 1

Interaction 1 Enter Check Hot Spots into the field.

Interaction 1

Interaction 1 Click the Apply button.

Your new note is now in position. You can edit the note or move it to a different place. Clicking and holding the mouse down on the gray box above the note will allow you to re locate the note. Single click inside of the note to edit the note. Let's go and remove all the annotation from the chart.

You can add sketches and notes to a chart when viewing a chart from either the
chart viewer or the clipboard. Sketches and notes are saved and are available if you switch from the chart viewer to clipboard or from the clipboard to chart viewer.

Interaction 1

Interaction 1 Click the Undo button.

The undo will remove any sketch or annotation, however, it will not remove the note that has to be by either clicking the X on the note or deleting all annotation and sketch.

Interaction 1

Interaction 1 Click the Delete button.

Interaction 1

Interaction 1 Click Yes.

Delete will remove all sketch and annotation including any notes on the chart.
